Model：GEPON OLT


Description



The GEPON OLT transceiver is small form factor pluggable module for serial optical data communications such as IEEE 802.3ah 1000BASE-PX20+. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1490 nm or 1610nm.
GEPON OLT Details



Download List

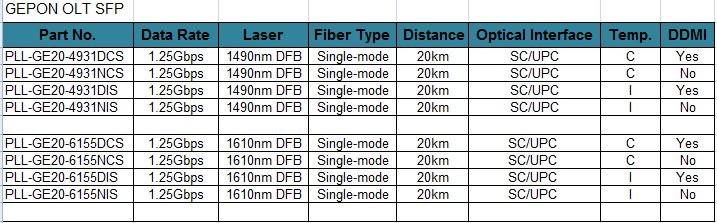

1.25G GEPON OLT Transceiver



Features:



Ø  Operating data rate up to 1.25 Gbps

Ø  DFB-LD Transmitter and burst-mode APD-TIA Receiver

Ø  Distance up to 20km

Ø  Single 3.3V Power supply and TTL Logic Interface

Ø  Digital burst RSSI function to monitor the input optical power level

Ø  Single SC/UPC Connector Interface

Ø  Hot Pluggable

Ø  Compliant with MSA SFP Specification SFF-8472

Ø  Compliant with IEEE 802.3ah

Ø  Low EMI and Excellent ESD protection
