Model：3G 6G 12G-SDI Video SFP/SFP+

Video Applications:

Ø 3G-SDI Video optical transmission with pathological pattern

Ø 6G-SDI Video optical transmission with pathological pattern

Ø 12G-SDI Video optical transmission with pathological pattern

3G 6G 12G-SDI Video SFP/SFP+ Details

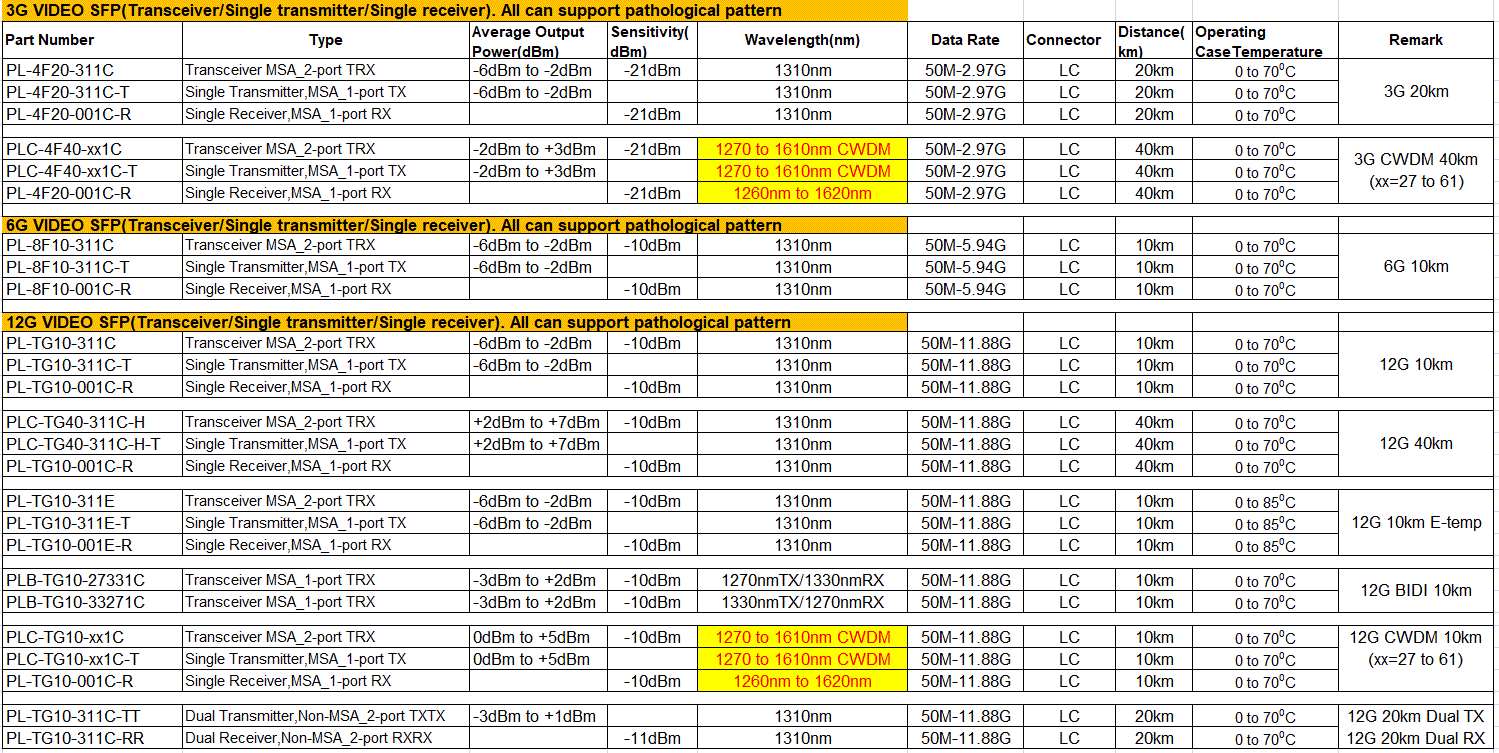

Download List for 3G/6G/12G Video SFP

Video SFP optical module

Features

Ø   Operating data rate up to 11.88Gbps

Ø   Transmission distance with 9/125 μm SMF up to 40km

Ø   DFB laser transmitter and PIN receiver

Ø   Single 3.3V power supply

Ø   Operating case temperature: 0 to +70°C

Ø   100Ω differential AC coupled CML Outputs

Ø   Hot pluggable SFP Footprint LC Connector Interface

Ø   Digital diagnostic monitor interface compliant with SFF-8472

Ø   Class I laser product

Ø   Compliant with SFP MSA

Ø   Compliant with SFF-8472

Ø    RoHS compliance

Ø   Compliant with SMPTE 424M/297M (1080p50/59.94/60 2.97 Gbps)

Ø   Compliant with SMPTE 292M/297M (HDTV - 1.485 Gbps)

Ø   Compliant with SMPTE 259M/297M (SDTV - 270/360 Mbps)

Ø   Compliant with SMPTE ST-2081(2160p30-6Gbps)

Ø   Compliant with SMPTE ST-2082(2160p60-12Gbps)
