Model:1310nm 40km 12G Video SFP
12G 40km SFP+ Video Optical Transceiver (12G-SDI)
Part Number: PLC-TG40-311C-H


Features

u   Operating data rate up to 11.88Gbps
u   1310nm DFB laser and PIN receiver
u   Up to 40km at 11.88G on SMF transmission
u   Compliant with SD,HD,3G-SDI,6G-SDI,12G-SDI
u   Support SMPTE 424M, SMPTE 292M, SMPTE 259M SMPTE ST-2081 SMPTE ST-2082
u   Support pathological pattern transmission
u   Single 3.3V power supply
u   Operating case temperature: 0 to +70°C
u   Hot pluggable SFP+ Footprint LC Connector Interface
u   Class I laser product

Standard

u   Compliant with SFP+ MSA
u   Compliant with SFF-8472
u   RoHS compliance
u   Compliant with SMPTE 424M/297M (1080p50/59.94/60 2.97 Gbps)
u   Compliant with SMPTE 292M/297M (HDTV - 1.485 Gbps)
u   Compliant with SMPTE 259M/297M (SDTV - 270/360 Mbps)
u   Compliant with SMPTE ST-2081(2160p30 - 6Gbps)
u   Compliant with SMPTE ST-2082(2160p60 - 12Gbps)

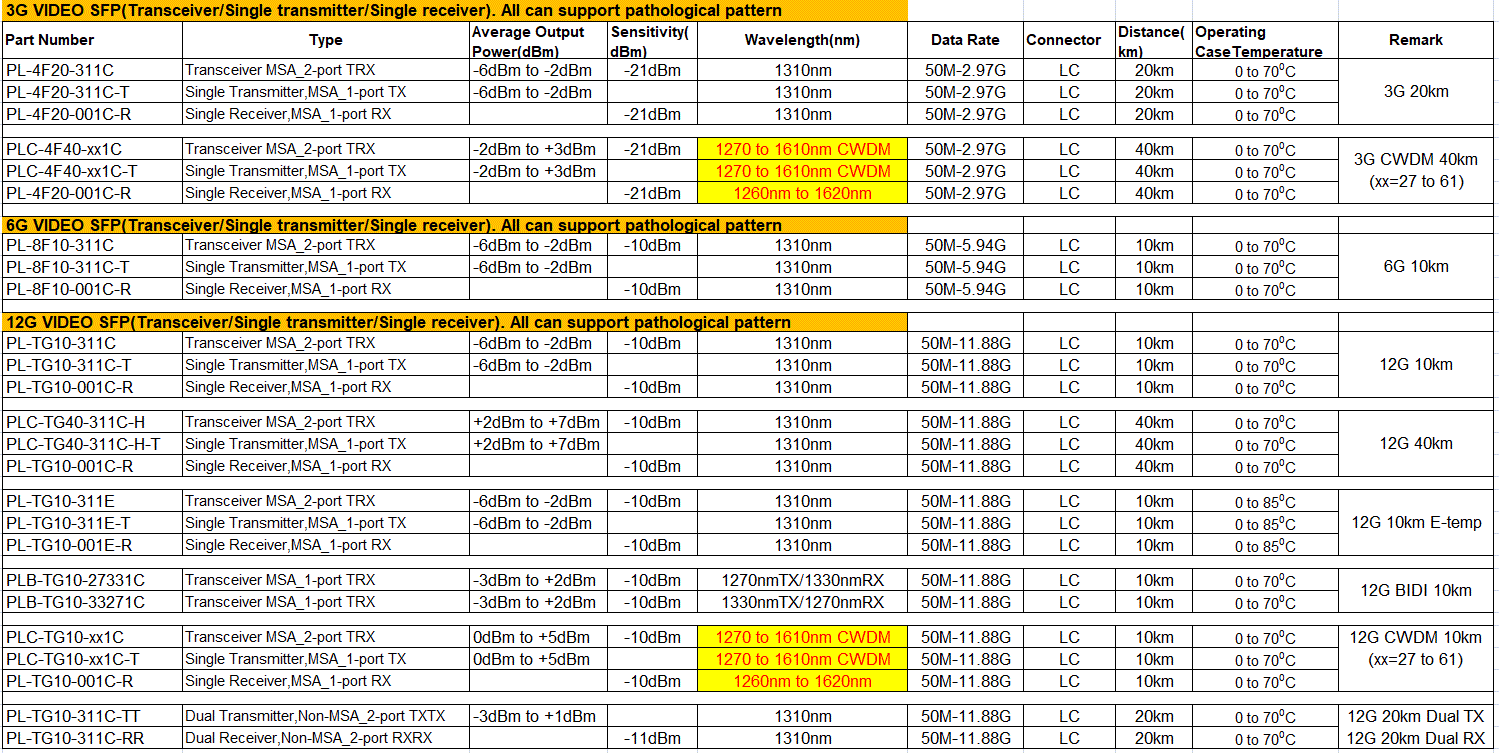

1310nm 40km 12G Video SFP Details
Description

11.88G Video SFP+ Transceiver consists of two sections: The transmitter section incorporates a DFB laser. And the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).

This SFP+ module includes a receiver and a transmitter which facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fiber, and also receives an optical SDI signal and converts to an electrical signal for further processing. Wavelength is 1310nm and suitable for distance up to 40km at 11.88G on SMF.

The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver.

The standard serial ID information compatible with SFP+ MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the two-wire serial CMOS EEPROM protocol.
